Coordinate Measuring Machine (CMM): Types and Accuracy

A drawing with tight form tolerances is only as good as the inspection equipment used to verify it. A caliper captures individual lengths, while a coordinate measuring machine captures an entire part as a three-dimensional point cloud and compares it against the CAD model.

In brief: A coordinate measuring machine (CMM) probes a part in three spatial axes and derives dimensions, form, and position deviations with micrometer-level accuracy. Several machine types exist, from the classic bridge-type CMM to cantilever and horizontal-arm machines to handheld measuring arms. For buyers, what matters is that a CMM inspection report is only as meaningful as the measured points, tolerances, and the calibration status of the machine itself.

What Is a Coordinate Measuring Machine?

A coordinate measuring machine, or CMM, is a measuring instrument that captures the position of points on a part's surface within a three-dimensional coordinate system. From this set of measured points, the associated software calculates dimensions, angles, distances, and form and position deviations, and compares them directly against the target values from the CAD model.

In German, the common abbreviation is KMG (Koordinatenmessgerät), while CMM (Coordinate Measuring Machine) is the standard international term.

How Does a Coordinate Measuring Machine Work?

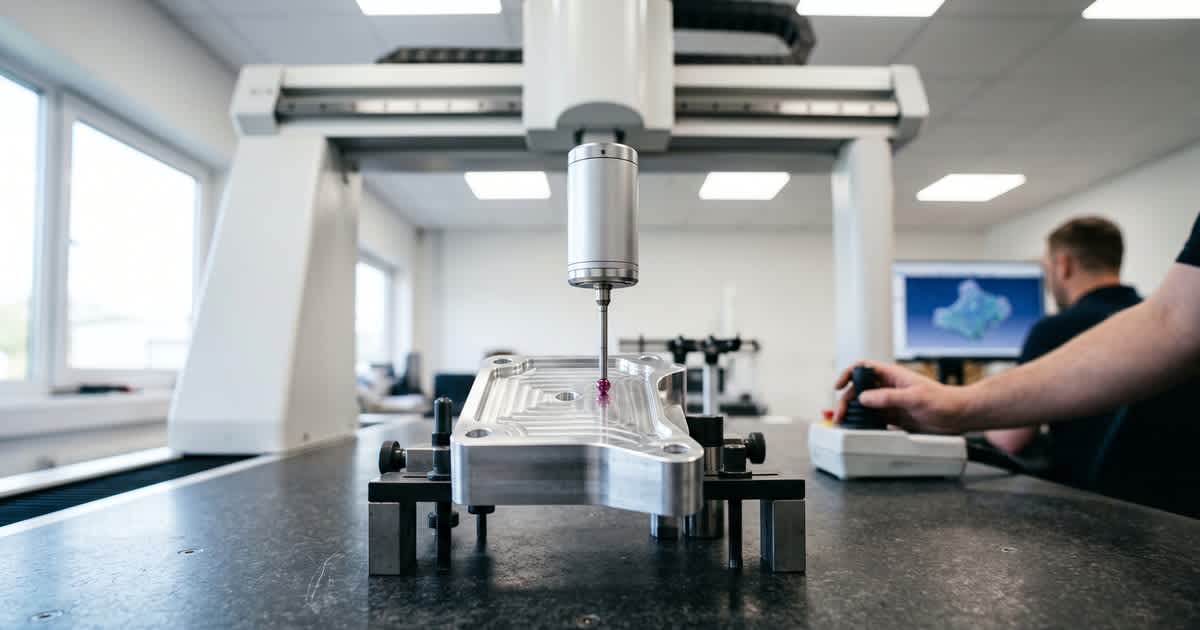

A probe, usually a spherical ruby-tipped stylus, touches the part at defined points or continuously traces its contour. Each contact point delivers a coordinate in X-Y-Z space, which the controller passes on to the evaluation software.

In our quality assurance work on parts sourced from the Far East, we regularly see CMM inspection reports that list measured values but don't document the probed points themselves. Without that information, it's hard to verify afterward whether the critical features on the drawing were actually checked, or just a sample of easily accessible surfaces.

The software calculates geometric elements such as circles, planes, or cylinders from the captured points and compares them with the target geometries stored in the CAD model. The resulting deviation forms the actual inspection report, which lists dimensional, form, and position tolerances individually. In practice, the report usually shows a table with the target and actual value for each feature plus its deviation. It's often supplemented by a color-coded deviation map that immediately flags out-of-tolerance areas.

Newer coordinate measuring machines increasingly use optical or laser sensors alongside the tactile probe, measuring without contact. That's especially suited to sensitive surfaces or very soft materials, where a mechanical probe could distort the measurement. The VDI/VDE guideline 2617 Part 6 sets out how the accuracy of such optical probing systems is tested and specified, since their error sources differ from those of tactile systems.

What Machine Types of Coordinate Measuring Machines Exist?

The machine type determines how the measuring volume is mechanically supported, and directly affects accuracy, part size, and cost.

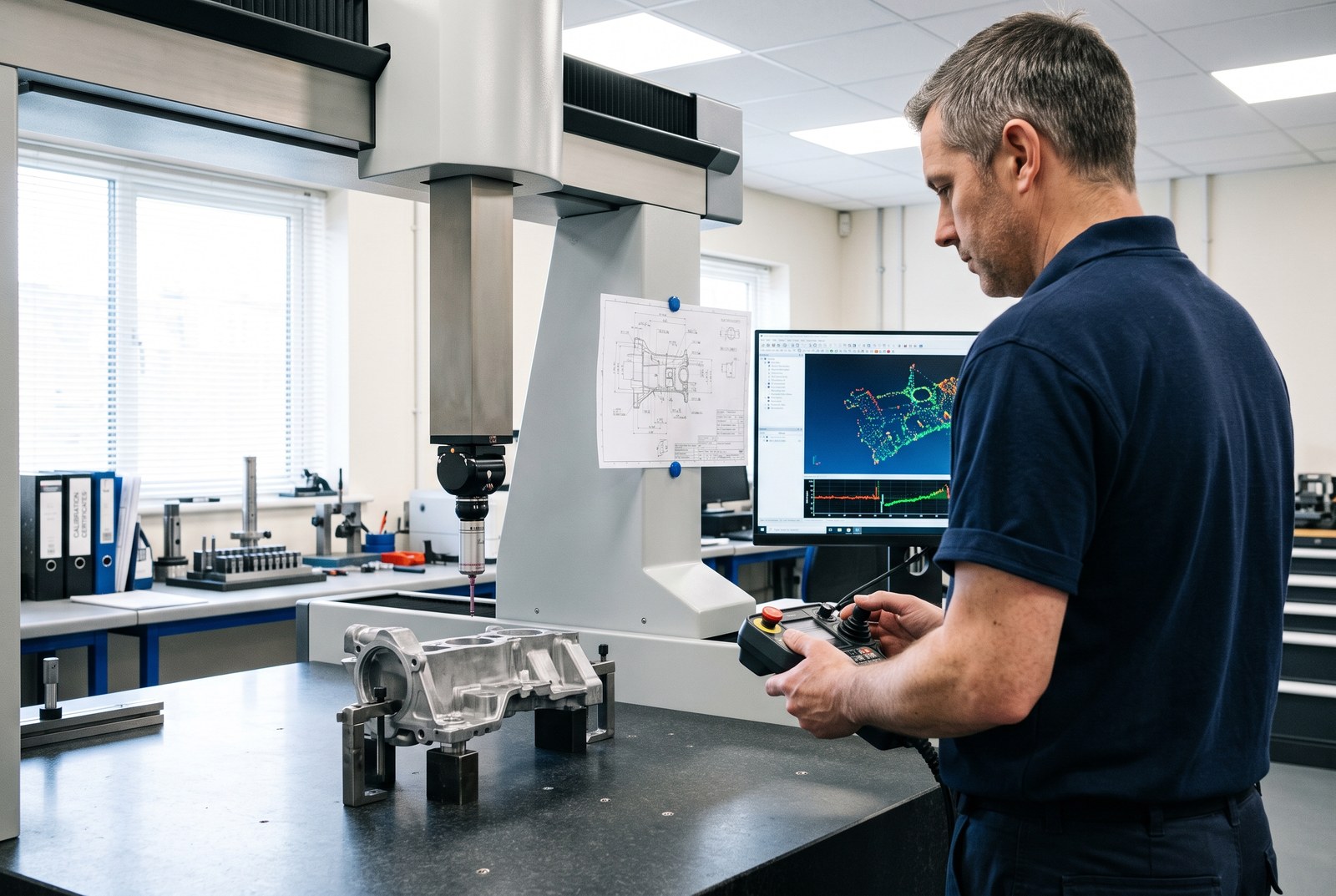

The gantry (bridge) design is the most widely used in industry, since it offers the best combination of accuracy, measuring volume, and cost. Handheld measuring arms trade some accuracy for flexibility and can be used directly on the production line instead of in a climate-controlled measuring room.

How Accurate Is a Coordinate Measuring Machine?

The achievable measurement accuracy of high-quality coordinate measuring machines lies in the range of a few micrometers, depending on machine type, measuring volume, and ambient conditions. That makes it possible to reliably verify the tight tolerance classes from ISO 2768 and the geometric form and position tolerances, for which a caliper or micrometer is no longer sufficient.

In sourcing, we often see buyers treat a CMM inspection as a blanket "checked and passed," without questioning the actual measurement uncertainty of the machine used. For very tight tolerances, the machine's own measurement uncertainty can consume a meaningful share of the allowable tolerance, which matters when evaluating borderline cases.

Temperature plays a bigger role than often assumed: these machines are typically calibrated at 20°C. Even small deviations from that reference temperature can measurably distort results, particularly on large metal parts with correspondingly significant thermal expansion.

What Does Calibration Mean for a Coordinate Measuring Machine's Reliability?

A coordinate measuring machine must be calibrated regularly so its measured values remain traceable to a national standard, maintained in Germany by the Physikalisch-Technische Bundesanstalt (PTB) as the national metrology institute. For inspection reports meant to hold up with customers or regulators, calibration by a laboratory accredited under DIN EN ISO/IEC 17025, in Germany through DAkkS, is the usual proof. Without that traceability, there's no way to demonstrate in a dispute that the stated measured values actually correspond to the part's real geometry.

For buyers who have parts inspected at manufacturing partners in the Far East, that's a concrete point to raise in the inquiry. An inspection report only becomes meaningful once it states the calibration date and traceability of the machine used, not just the raw measured values. If that information is missing, it's worth asking the supplier directly before accepting the report as the basis for release.

A solid inquiry should spell out:

• Measurement points: which drawing features get probed

• Tolerances: the allowable deviation for each feature

• Calibration date and traceability: of the coordinate measuring machine used

• Report format: a target-actual table or a deviation map, depending on the need

Time and cost for a full CMM inspection scale strongly with the number of measurement points. A single check on a few features often takes only minutes. A comprehensive first-article inspection with hundreds of points, by contrast, can take several hours of machine time depending on part complexity.

What's the Difference Between a 2D and a 3D Coordinate Measuring Machine?

A 2D measuring machine, often called an optical comparator, captures contours in a single plane and suits flat parts such as stamped components or sheet metal blanks. A true 3D coordinate measuring machine, by contrast, captures all three spatial axes at once, so it can fully inspect spatially complex parts too, such as castings or milled components with bores and freeform surfaces.

When Should Buyers Require CMM Inspection During Incoming Goods Inspection?

For parts with tight form and position tolerances, complex freeform surfaces, or a safety-critical function, a purely visual or manual incoming goods inspection usually isn't enough to reliably confirm dimensional accuracy. In such cases, it's worth specifying a CMM inspection with defined measurement points, plus a corresponding inspection report, as a delivery condition already in the inquiry. Whether a manufacturing partner even has in-house CMM capacity or outsources inspection can also be clarified as part of a supplier audit, before the first parts are ordered.

For simpler, non-critical parts with generous tolerances, a full CMM inspection is often disproportionate, and standard measuring tools plus sample-based checks are sufficient. A useful rule of thumb is to match inspection depth to feature criticality: safety-relevant fits justify a full CMM measurement, non-critical outer dimensions often don't.

Frequently Asked Questions About Coordinate Measuring Machines

What does CMM mean?

CMM stands for Coordinate Measuring Machine. In German, the common abbreviation is KMG (Koordinatenmessgerät).

How accurate is a coordinate measuring machine?

High-quality coordinate measuring machines achieve measurement accuracies in the range of a few micrometers, depending on machine type, measuring volume, and ambient conditions such as temperature.

Which coordinate measuring machine type is most common?

The bridge (gantry) CMM is the most widely used in industry, since it offers a good combination of accuracy, measuring volume, and cost.

What's the difference between tactile and optical measurement?

Tactile measurement captures points through mechanical contact between a probe and the part, while optical measurement works without contact using camera or laser sensors, which is especially suited to sensitive surfaces.

Does a coordinate measuring machine need to be calibrated?

Yes, for reliable and traceable inspection reports, the coordinate measuring machine must be calibrated regularly, ideally by an accredited body such as DAkkS.

Conclusion: A Coordinate Measuring Machine as the Basis for Reliable Inspection Reports

A coordinate measuring machine only provides a reliable statement about a part's dimensional accuracy when the measured points, tolerances, and calibration are clearly documented in the inspection report. Requiring these details already in the inquiry avoids later disputes over whether a passed inspection actually means anything.
