CNC Milling: Process and Applications

A local contract-machining shop prices an aluminum part well over budget, because the batch size is too small to spread the setup time economically. Anyone who only knows that one supplier is missing a second option: sourcing the same part CNC-milled from the Far East, with the same tolerances but a different cost structure.

In brief: CNC milling is a material-removal process where a rotating tool cuts material from a workpiece, controlled across 3, 4, or 5 axes. It works for metals like aluminum and stainless steel as well as technical plastics. Cost depends mainly on batch size, material, and required tolerance, there's no flat price per part.

What Is CNC Milling?

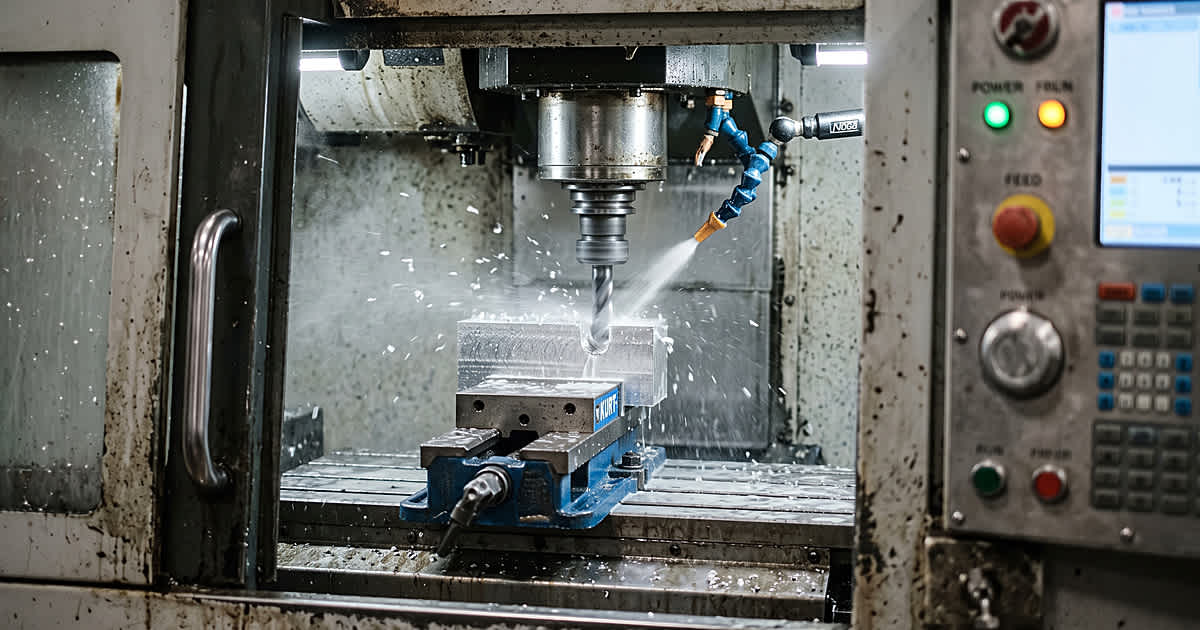

CNC milling is a material-removal process in which a rotating cutting tool removes material from a workpiece that's either clamped in place or moved under computer control. CNC stands for Computerized Numerical Control, the computer-driven control of the machine following a pre-written program. Unlike turning, where the workpiece itself rotates, in milling the tool rotates while the workpiece or tool moves along several axes.

The milling tool's cutting edges aren't continuously engaged, they touch the material briefly on each rotation, remove a chip, and disengage again. This interrupted cutting action distinguishes milling from continuously cutting processes like turning and puts different stress on the tool.

How Do 3-Axis, 4-Axis, and 5-Axis Milling Differ?

The number of axes determines how freely the tool and workpiece can move relative to each other, and therefore how complex a geometry can be produced in a single operation. The breakdown below follows martanmetall.de's comparison of 3-axis, 4-axis, and 5-axis milling:

In our sourcing projects, customers often ask specifically for 5-axis milling even when their part could also be made with 3 axes and two setups. The real advantage of 5-axis milling is that a part gets fully machined in a single clamping operation. The axis count itself plays a secondary role. Every additional setup is a new opportunity for dimensional drift, so fewer re-clampings tend to mean tighter tolerances, independent of the raw axis count.

Which Materials Can Be CNC Milled?

CNC milling generally handles metals and technical plastics, though cutting speed and tool wear differ substantially by material, as laserhub.com describes in detail:

pos.de's analysis of CNC machining costs explains the mechanism: stainless steel's lower thermal conductivity pushes tool cost to roughly €12 per machine hour instead of €5 for aluminum. Anyone designing a part for low manufacturing cost shouldn't consider material choice separately from machining, particularly when weighing aluminum against stainless steel, the difference shows up directly in the unit price.

What Tolerances Are Achievable with CNC Milling?

There's no blanket tolerance figure for CNC milling, achievable accuracy depends on the machine, workpiece, material, clamping, and the specific feature being produced. As a rough guide, around ±0.05 mm counts as the cost-effective standard for most applications, while values from about ±0.005 mm already require demanding precision machining, of the kind needed in aerospace or medical devices.

In practice, what matters most is what tolerance a part actually needs. The theoretically possible accuracy takes a back seat. General tolerances under ISO 2768 provide a standardized framework with fine, medium, and coarse classes that buyers can reference instead of negotiating an individual tolerance for every dimension.

What Does CNC Milling Cost?

The cost of a milled part comes from setup, machining time, material, tool wear, and any post-processing, with setup cost being the biggest lever at small batch sizes, as strobel-industry.de shows with concrete batch sizes:

In our sourcing projects, this exact setup-cost effect is why CNC milling from the Far East only pays off above a certain batch size. For a single piece or a very small run, the extra transit time often eats up the cost advantage, for medium to larger runs the balance flips. So we check, for every inquiry, at what quantity routing through a Far East partner actually pays off, rather than promising that as a blanket rule.

What Should Buyers Watch for When Sourcing CNC Milled Parts?

A solid inquiry for CNC milled parts needs at minimum a dimensioned drawing with tolerances per ISO 2768 or individual callouts, the desired material designation, the required surface finish, and the planned batch size. Without these details, the supplier calculates at their own discretion, which makes quotes from different suppliers hard to compare.

The manufacturing partner's experience with the specific axis count and material matters just as much. A supplier who regularly machines 5-axis stainless steel parts tends to deliver more consistent results in that exact combination than a generalist. A structured supplier evaluation helps assess that track record before the first production order.

Choosing between local contract machining and Far East sourcing also involves more than the unit price alone. Anyone factoring in total cost of ownership should weigh transit time, customs cost, and the added coordination effort across distance against the lower unit price.

Frequently Asked Questions About CNC Milling

What Does CNC Stand For?

CNC stands for Computerized Numerical Control, the computer-driven control of a machine tool following a pre-programmed sequence of operations.

What Does an Hour of CNC Milling Cost?

There's no flat answer, the hourly rate depends on machine type, axis count, material, and manufacturing location. Machines with more axes tend to carry a higher hourly rate but often need fewer clampings and less total setup time.

What's the Difference Between CNC Milling and CNC Turning?

In milling, the tool rotates while the workpiece mostly moves linearly or along one additional axis. In turning, it's reversed: the workpiece rotates while the tool feeds in linearly. Milling suits angular and complex geometries better, turning suits rotationally symmetric parts like shafts or pins.

Does CNC Milling from the Far East Pay Off for Small Batch Sizes?

Not always. At very small quantities, the lower unit price often doesn't offset the added transit time and proportional shipping cost. At what batch size sourcing through a Far East partner actually pays off depends on the part, the material, and the required delivery time, and should be checked case by case.

Conclusion: CNC Milling Pays Off with the Right Specification

CNC milling covers a wide range of materials and geometries, but only produces comparable quotes when tolerances, material, surface finish, and batch size are set upfront. Whether local contract machining or a Far East partner pays off more in the end comes down to the actual quantity in each case.
