Geometric Tolerances: GPS Symbols and Tolerance Frames

A drawing package arrives for a die-cast aluminium component — 47 dimensions, "ISO 2768-mK" in the title block. So far, familiar. But on two bores and one sealing surface there are rectangular frames with symbols that go beyond the general tolerance: a circle with a crosshair, a double arrow, a small parallelogram. A buyer who cannot read these symbols misses safety-critical requirements — and risks discovering the part is unusable only at assembly.

In brief: Geometric tolerances define how precisely a component must be manufactured in terms of geometry, position, and orientation. They are part of the GPS system (Geometrical Product Specification) defined by ISO 1101, and they supplement ISO 2768 general tolerances with specific, function-driven requirements for individual features. This article explains all 16 geometric tolerance types with their symbols, walks through reading a tolerance frame step by step, and sets out what this means for the procurement of mechanical components.

What Is the GPS System?

The Geometrical Product Specification (GPS) system is an international standards framework coordinated by ISO TC 213 and encompassing more than 100 individual standards. Its goal: a universal, globally understood language for the complete geometric description of products — from dimensional tolerances to surface texture.

The central standard for geometric tolerances is ISO 1101:2017 (DIN EN ISO 1101). It defines:

• the symbolic notation for geometric tolerances

• the rules for tolerance indicators (tolerance frames)

• the definition of datums and datum reference frames

• how tolerance zones are interpreted

GPS complements ISO 2768: while ISO 2768 provides default values for all dimensions not explicitly toleranced, GPS steps in where a specific feature requires function-critical precision. A GPS tolerance is always a deliberate design decision — not a default.

For international procurement, this matters: a tolerance frame reading "⊥ | 0.02 | A" means the same in China, Japan or Mexico as it does in Germany — provided the supplier knows the standard.

The Four Categories of Geometric Tolerances

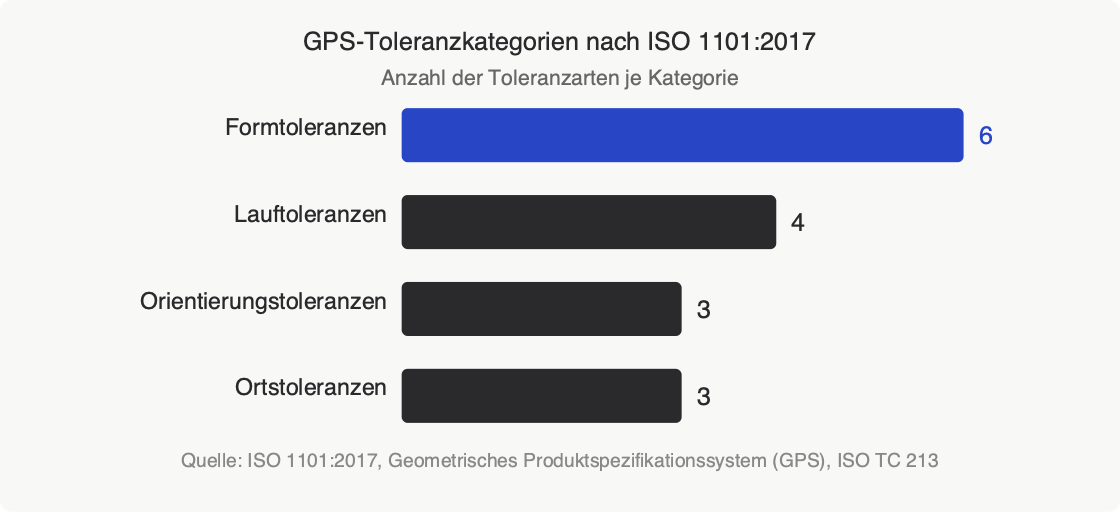

ISO 1101 defines 16 geometric tolerance types across four main categories:

1. Form Tolerances

Form tolerances describe how much a feature (line, surface) may deviate from its ideal geometric shape — independently of its position in space. They do not require a datum reference.

Form tolerances are especially important on sealing surfaces, plain bearings, and wherever geometric quality directly determines function.

2. Orientation Tolerances

Orientation tolerances define the angular relationship of a feature to a datum. They control how "skewed" an element is relative to a reference surface or axis.

3. Location Tolerances

Location tolerances specify the permissible deviation from the theoretically exact position of a feature in space. They always reference one or more datums.

Position tolerance is the most versatile and widely used location tolerance. With a cylindrical tolerance zone (prefix ⌀), the zone is rotationally symmetric — this allows more tolerance volume than an equivalent square zone, which can reduce manufacturing cost while maintaining functional fit.

4. Run-Out Tolerances

Run-out tolerances verify how precisely a rotating component runs around its datum axis. They are particularly relevant for shafts, rotors, and precision rotating parts.

The key distinction: circular run-out measures in a single cross-sectional plane; total run-out measures across the entire length of the cylinder — more demanding and more expensive to achieve.

Reading a Tolerance Frame — Step by Step

The tolerance frame (tolerance indicator) is the standard representation on a drawing. It consists of two to four rectangular compartments, read left to right:

┌──────────┬──────────┬──────────┬──────────┐ │ Symbol │ Value │ Datum 1 │ Datum 2 │ └──────────┴──────────┴──────────┴──────────┘ `

Compartment 1 — Tolerance symbol: One of the 16 GPS symbols. "⊕" indicates a position tolerance.

Compartment 2 — Tolerance value in millimetres: The maximum permissible deviation. A preceding "⌀" indicates a cylindrical tolerance zone. "S⌀" indicates a spherical zone.

Compartments 3–4 (optional) — Datum reference(s): The datum (A, B, C) to which the tolerance refers. Without a datum, the tolerance is a form tolerance and requires no reference point.

Practical example 1: ⊥ | 0.02 | A — the feature must be perpendicular to datum surface A within 0.02 mm.

Practical example 2: ⊕ | ⌀ 0.1 | A | B — the position of the feature must lie within a cylindrical tolerance zone of ⌀ 0.1 mm, referenced to primary datum A and secondary datum B.

Reading tolerance frames is a core competency for buyers and quality inspectors. Without it, neither sourcing enquiries nor inspection reports can be properly assessed. How GPS tolerances are applied in practice during receiving inspection is covered in our guide to incoming goods inspection.

Geometric Tolerances in Procurement

GPS vs. ISO 2768: When Does Each Apply?

ISO 2768 provides general tolerances: standard values for any dimension without its own tolerance annotation. GPS tolerances are function-driven. They appear on the drawing because this specific feature requires precise geometry to work correctly.

A practical example: the sealing face on a hydraulic cylinder receives a flatness tolerance of 0.02 mm. Without that explicit call-out, ISO 2768-mK would permit a flatness of 0.1 to 0.2 mm depending on surface size — up to ten times more than the required 0.02 mm — making a reliable seal impossible. The GPS tolerance overrides the general tolerance at exactly that location.

The following overview shows typical cases from procurement practice:

GPS in International Procurement

In Far East sourcing and in Asian procurement markets in general, misunderstandings around GPS tolerances arise more often than expected. Common causes:

• Missing or ambiguous datums: A perpendicularity tolerance without a defined datum is technically ambiguous. Every inspector measures differently.

• Inconsistent CAD standards: Some CAD systems do not render GPS symbols correctly or lose them on PDF export.

• Varying experience levels: Smaller manufacturers primarily working with simplified drawings may have limited exposure to full GPS specification.

At Line Up, drawing review for GPS compliance and completeness is a standard step in supplier qualification. Catching misinterpretations before the first sample run avoids expensive corrections after series production begins. More on this in our article on product sampling in procurement.

Calculating Tolerance Costs

Geometric tolerances have a direct impact on manufacturing costs. According to the American Society for Quality (ASQ), quality costs in manufacturing (scrap, rework, warranty) average 5 to 25 per cent of annual sales.

A significant share of these costs originates in over- or under-specified tolerances. The rule of thumb: tightening a tolerance by one accuracy grade noticeably increases manufacturing cost. It demands more precise tooling, slower processes, and more rigorous inspection. GPS tolerances should therefore always be function-driven: as tight as necessary, as wide as possible.

One important distinction: geometric tolerances control the shape of a feature (for example, the roundness of a bore), while dimensional tolerances control the diameter. Both together determine fit and function. For the fundamentals of dimensional tolerancing, our article on fits per ISO 286 explains clearance, transition, and interference fits in detail.

Orientation Values for GPS Tolerances

As a starting point for drawing review, the following reference values from general manufacturing practice are widely used. They are not a substitute for project-specific tolerance analysis, but help assess at first glance whether a specified value is plausible or suspiciously tight:

Precision values typically require grinding, honing or hard turning, and are noticeably more expensive than medium-accuracy equivalents. They should only be specified where function demands it.

Common Mistakes in GPS Specification

Five recurring errors in procurement practice:

1. Missing or incorrect datums A position tolerance without a defined datum leaves open what the position is measured from. The result: every inspector measures differently, and every measurement device gives different readings.

2. Over-specification as a precaution Adding GPS tolerances everywhere because it seems "safer" drives up manufacturing costs, especially when the values are tighter than the supplier's own measurement capability.

3. Confusing form and dimensional tolerance A roundness tolerance controls the circular shape of a cross-section, not the diameter. Both are needed when a bore must be both dimensionally accurate and truly circular.

4. Ambiguous datum hierarchy When tolerances reference A, B, and C, the order (primary, secondary, tertiary) must be unambiguous. It determines how the part is fixtured in the measuring device.

5. No early discussion with the supplier GPS specifications should be reviewed jointly at the supplier audit stage and during first article inspection, not raised as a complaint once series production is running.

Frequently Asked Questions

What is the difference between form and location tolerances?

Form tolerances (straightness, flatness, roundness, cylindricity) describe the geometric quality of a single feature without reference to other surfaces. Location tolerances (position, orientation, and run-out tolerances) define the position or orientation of a feature relative to a datum.

Which standard governs geometric tolerances?

The central standard is ISO 1101:2017 (DIN EN ISO 1101), embedded within the GPS system (Geometrical Product Specification) under ISO TC 213.

When do I need GPS tolerances instead of ISO 2768?

ISO 2768 applies as a general tolerance for all dimensions not explicitly toleranced. GPS tolerances are used when a feature has a function-critical geometric requirement that exceeds the general tolerance, for example a sealing face, a hole pattern, or a bearing axis.

How do you read a tolerance frame?

A tolerance frame has at least two compartments: the first contains the GPS symbol (e.g. ⊥ for perpendicularity), the second the tolerance value in millimetres. One or two datum references (A, B, C) may follow. The section "Reading a Tolerance Frame" explains this step by step.

Which GPS tolerance is used most frequently?

Position tolerance (⊕) is the most widely used location tolerance, as it applies universally to hole patterns, bore arrangements, and thread positions. Among form tolerances, flatness is most commonly found on sealing and mounting surfaces.

Conclusion: GPS Tolerances Correctly Applied

Geometric tolerances are the core of any precise technical drawing. They translate functional requirements into an unambiguous, measurable language, provided they are correctly specified and properly read.

At Line Up, we accompany this process from the start: drawing review, supplier qualification, first article inspection, and incoming goods control. Our SCD Dashboard allows quality requirements and tolerance specifications to be tracked digitally across the entire supply chain, from drawing approval to goods receipt.
