Material Testing: Destructive vs. Non-Destructive

A component from the Far East arrives. The drawing calls for a minimum tensile strength of 500 N/mm², and no test certificate is on file. The immediate question is which method of material testing can actually verify the required property. Just as important: can the part survive the test at all? That distinction is often what decides which testing strategy makes sense in procurement.

In brief: Material testing splits into two groups. Destructive methods (tensile test, bend test, Charpy impact test) deliver mechanical property values, but render the part unusable. Non-destructive methods (visual inspection, penetrant testing, ultrasonic, radiographic, and eddy current testing) detect defects without damaging the part. In practice, the two approaches complement each other: destructive testing on samples, non-destructive testing on the full batch or on production parts that need to stay usable.

What does material testing actually mean?

Material testing covers all methods used to verify the mechanical, physical, or chemical properties of a material or component. The goal is to confirm whether a material meets the properties required in the specification. That includes strength, hardness, toughness, or the absence of internal defects like voids and cracks.

In international procurement, material testing is rarely an end in itself. It's usually the answer to a very concrete trust question: does the delivered material actually match the ordered grade, or did the manufacturer cut corners somewhere it shouldn't have? That's exactly why it pays to define the testing method at the order specification stage, not decide it once the shipment is already at incoming goods inspection.

Broadly speaking, the German Society for Non-Destructive Testing (DGZfP) distinguishes two categories of testing methods. They differ on one central point: whether the tested part remains usable afterward.

Beyond the mechanical methods, chemical analysis also belongs to material testing in the broader sense. It confirms, for instance, a component's alloy composition. For cyclically loaded parts, fatigue testing is used in addition, per standards such as DIN 50100. It determines fatigue strength under repeated loading, an aspect that purely static tensile or bend testing doesn't capture.

What's the difference between destructive and non-destructive material testing?

Destructive testing methods damage or destroy the tested component. In return, they deliver exact mechanical property values such as tensile strength, elongation at break, or impact toughness. Non-destructive testing (NDT) methods detect defects such as cracks, pores, or inclusions without damaging the component. Direct strength values, however, are not part of the result.

The choice between the two depends on the testing objective. Qualifying a new material or a new component design requires destructive testing on samples. Only that approach delivers the reliable property values needed. Checking an entire delivered batch or a finished production part for internal defects, on the other hand, calls for non-destructive testing as the only practical option. The part still needs to be usable afterward.

Which destructive testing methods are used in practice?

Destructive testing methods are typically applied to samples from a batch, rarely to every individual component. The most important methods in mechanical engineering are:

These methods deliver reliable, standards-compliant values that can be compared directly against the requirements in the order specification. Their drawback: every tested sample is unusable afterward, which is why destructive testing can't be applied to every single part in a shipment.

Which non-destructive testing (NDT) methods are available?

Non-destructive testing methods detect surface and, in some cases, internal defects without rendering the component unusable. According to the DGZfP, the following methods are among the most widely used in industry:

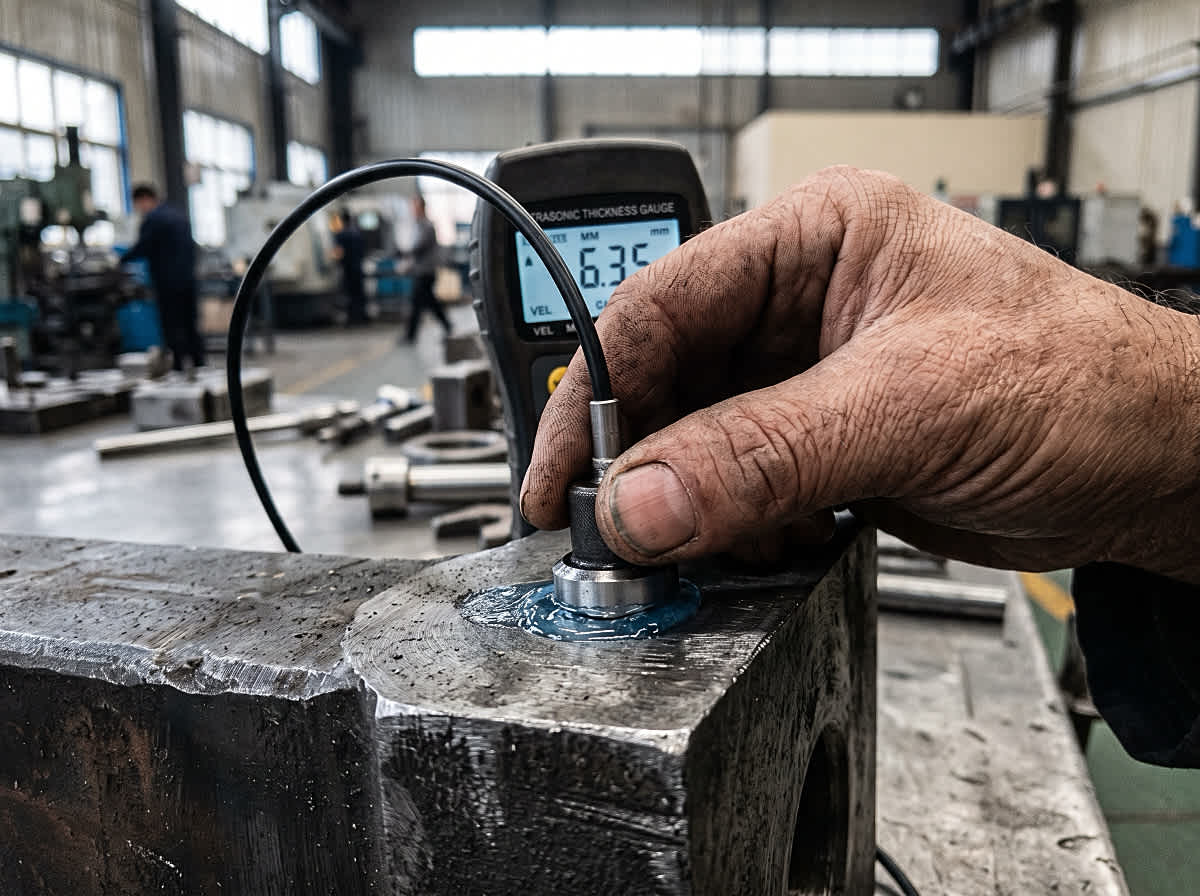

Visual inspection is the simplest and most widely used method, but only covers defects visible from the outside. Deeper-lying defects require ultrasonic or radiographic testing, both of which come with higher effort and cost.

When should buyers require destructive versus non-destructive testing?

In our sourcing projects in the Far East, we recommend a clear combination. During first-article inspection of a new supplier or component, we rely on destructive testing to confirm the fundamental material grade. For every subsequent delivery, non-destructive testing serves as ongoing verification. This combination reduces risk without unnecessarily driving up costs on every single shipment.

Three practical guiding questions help with the decision:

This decision should be locked into the order specification from the start, not debated once the shipment has already reached incoming goods inspection. If you're sourcing components with tight form and position tolerances, it's also worth clarifying whether geometric inspection is part of the agreed testing strategy.

How do testing methods relate to test certificates?

The result of a material test is typically documented in a test certificate. Depending on the agreed testing rigor, that ranges from a simple works test report up to an inspection certificate 3.1 per EN 10204, confirmed by an independent body within the manufacturer's organization. Which testing method was used and with what result needs to be traceably documented in the certificate. Otherwise, there's no evidence to fall back on for later claims.

The permitted dimensional tolerances, for instance per ISO 2768, should also be part of the testing agreement. Material testing without accompanying dimensional inspection otherwise only covers part of the relevant quality characteristics. Where in the process which test belongs is easiest to settle within your own incoming goods inspection: visual and dimensional checks belong right at delivery, more elaborate NDT methods reserved for genuinely critical characteristics. For personnel qualification behind these methods, DGZfP certification is a useful reference point.

Frequently Asked Questions

Is ultrasonic testing more expensive than visual inspection?

Yes, ultrasonic testing requires trained personnel and specialized equipment, while visual inspection can be carried out with minimal effort. The extra cost is worthwhile, though, for components where internal defects are safety-relevant and wouldn't be visible from the outside.

Can a component still be used after non-destructive testing?

Yes, that's the central advantage of non-destructive testing. Unlike a tensile test or bend test, the component remains intact after testing and, if it passes, can be used or installed normally.

Which method is suitable for welded joints?

Welded joints are typically checked with penetrant testing (for surface cracks) and ultrasonic or radiographic testing (for internal defects such as lack of fusion or porosity). Critical load-bearing structures often require a combination of several methods.

Conclusion: material testing as the foundation of reliable components

Destructive and non-destructive material testing aren't mutually exclusive, they complement each other. Well-planned material testing is therefore never an end in itself, it's the foundation of sound procurement decisions. Understanding both approaches and anchoring them deliberately in the order specification reduces the risk of undetected material defects without unnecessarily driving up the cost of every shipment.
