A drawing package arrives from a customer: screws, nuts, a threaded ring. The parts list reads "M8×1.25 – 6H/6g." The supplier in Guangzhou asks whether "6AZ" is also acceptable. The customs coordinator inquires whether UNC threads are permitted. Buyers who don't know thread tolerances and thread systems risk incorrect deliveries, rejected incoming inspections, and in the worst case, production stoppages at the customer's site.
Thread systems and their tolerance designations are fundamental vocabulary in technical procurement, and essential for supplier conversations with international manufacturing partners. This article explains the most important thread types, decodes thread tolerances per ISO 965, and covers what to watch for when sourcing threaded components internationally.
In brief: Thread types describe the profile system of a thread: metric, imperial, pipe, or trapezoidal. Thread tolerances define how precisely the thread must be manufactured. ISO 965 governs this for metric threads: 6H designates the tolerance class for internal threads (nuts), 6g for external threads (bolts). This pairing is the global standard for general-purpose threads in mechanical engineering. Anyone who can read thread designations in technical drawings communicates more precisely with international suppliers and reduces rejection rates at incoming inspection.
A thread is a helical groove profile on a cylinder (external thread, e.g., a bolt) or inside a bore (internal thread, e.g., a nut). When a bolt and nut are assembled, rotational motion converts to axial force. That is the fundamental function of any screw connection.
For buyers sourcing components globally, threads are relevant for three reasons: First, thread systems are not universally compatible: a metric M8 cannot be used in a Whitworth thread, even if the diameters appear similar. Second, the tolerance specification determines how tight or loose the fit between bolt and nut is, which directly affects function and assembly. Third, thread inspection is a standard part of incoming quality control. Buyers who understand the nomenclature define inspection plans more precisely.
Just as form and positional tolerances per ISO 1101 and general tolerances per ISO 2768 supplement the overall Geometrical Product Specification (GPS) system with function-specific precision requirements, thread tolerances bring that same logic to threaded connections.
More than 60 standardised thread systems exist worldwide. In industrial procurement, however, five appear with regularity.
From our experience in international component sourcing: the most common mix-up is not between metric and inch threads — most buyers are aware of that — but with pipe thread nominal sizes. When a drawing states "G 1/2," buyers instinctively think of a 12.7 mm outside diameter. In fact, the inch designation refers to the bore's nominal inside diameter, not the thread outside diameter.
By far the most widely used system. The metric ISO thread is standardised in ISO 724 and ISO 261, has a 60° flank angle and rounded thread tips. The designation follows the pattern M + nominal diameter + × + pitch, where pitch is only stated when it is a fine thread:
M8 = 8 mm nominal diameter, standard pitch 1.25 mm (implied)
M8×1 = 8 mm nominal diameter, fine pitch 1.0 mm
The standard pitch (also called coarse pitch) is defined for every nominal size and is the default for general-purpose applications. Fine pitch threads with a smaller pitch are used where axial forces must be dosed precisely or where vibrations would otherwise loosen the connection.
Technically identical to the M thread but with a reduced pitch. The smaller helix angle creates higher self-locking and allows finer axial adjustment. Common in hydraulics, precision mechanics, and engine construction. In technical drawings, always with an explicit pitch designation: M16×1.5, not M16.
Outside Europe and Asia, the metric system is not universal. When sourcing from North America or markets with an American manufacturing tradition, you will encounter:
UNC (Unified National Coarse): coarse pitch, general-purpose bolt thread
UNF (Unified National Fine): fine pitch, higher strength
BSW/BSF (British Standard Whitworth / Fine): older British system with a 55° flank angle
Key identifier: the nominal size is given in inches, and thread pitch in threads per inch (tpi). Example: "3/8"-16 UNC" means 3/8 inch diameter, 16 threads per inch, coarse thread. Metric and inch threads are not compatible, neither geometrically nor in their fits.
Pipe threads per ISO 228-1 (parallel) or ISO 7 (tapered) also carry a 55° flank angle (Whitworth profile). They are used in pipework and valve technology, where the thread pairing itself contributes to sealing or is sealed via thread sealant.
G (ISO 228): parallel (cylindrical) pipe thread; sealing is achieved via a sealing ring or thread sealant compound, not through the thread geometry itself
R / Rp / Rc (ISO 7): R = tapered external thread, Rp = parallel internal thread, Rc = tapered internal thread; sealing is produced by the tapered external thread engaging into the mating thread
On drawings, pipe threads are often designated with nominal bore size in inches (G1/4, G1/2), even when the product is otherwise entirely metric.
These two thread forms are not used for releasable fastening but for power transmission. The trapezoidal thread (ISO 2901) with a 15° flank angle per flank (included angle 30°) is used in lead screws, presses, and linear drives. The buttress thread with its asymmetric profile transmits loads predominantly in one direction, as is typical in vices and jacks.
For general mechanical engineering procurement, trapezoidal and buttress threads are the exception; they appear in drawing packages for precision mechanics or machine tools.
The standard (coarse) pitch is defined for every metric nominal size. When a drawing states only "M8" without a pitch designation, this is always the pitch that applies. The table below is the quick reference buyers use when verifying drawing packages or writing procurement specifications.
Size | Coarse Pitch (mm) | Common Fine Pitches (mm) |
|---|---|---|
M3 | 0.5 | |
M4 | 0.7 | |
M5 | 0.8 | |
M6 | 1.0 | 0.75 |
M8 | 1.25 | 1.0 |
M10 | 1.5 | 1.0 · 1.25 |
M12 | 1.75 | 1.0 · 1.25 · 1.5 |
M16 | 2.0 | 1.0 · 1.5 |
M20 | 2.5 | 1.0 · 1.5 · 2.0 |
M24 | 3.0 | 1.0 · 1.5 · 2.0 |
Source: DIN 13-1:1999 / ISO 261:1998 (metric ISO coarse-pitch threads).
Practical note: fine pitches are always stated explicitly on the drawing (e.g. M10×1.25). If no pitch is given, the coarse pitch applies; this holds under both ISO and ANSI/ASME B1.13M.
The tolerance system for metric threads is governed by ISO 965-1. Anyone familiar with the fit system per ISO 286 will immediately recognise the logic: upper-case letters designate internal threads (nuts), lower-case letters designate external threads (bolts). The number indicates the tolerance grade.
A tolerance designation such as 6H or 6g has two components:
Element | Meaning |
|---|---|
Number (4, 5, 6, 7, 8) | Tolerance grade: smaller = tighter, larger = looser |
Upper-case letter (H, G, E) | Fundamental deviation for internal thread (nut) |
Lower-case letter (h, g, e, f) | Fundamental deviation for external thread (bolt) |
The letter determines the position of the tolerance field relative to the theoretical thread axis: whether the tolerance field sits on the nominal line (H/h: zero deviation) or is offset from it (G/g: small undersize toward nominal).
6H is the standard tolerance for internal threads: the lower deviation lies exactly on the zero line and the tolerance field opens only inward (toward oversize). The internal thread therefore never becomes tighter than the nominal profile, a principle analogous to the "system of unified hole" in fits per ISO 286.
6g is the standard tolerance for external threads: the tolerance field is positioned with a small fundamental deviation below the nominal line, meaning the bolt is marginally smaller than the theoretical profile and fits securely into the nut.
Thread pairings can be characterised in terms of the classic fit categories:
Tolerance Pairing | Character | Typical Application |
|---|---|---|
4H5H / 4h | Close (fine fit) | Precision, fine mechanics, short engagement lengths |
6H / 6g | Medium (standard fit) | General mechanical engineering, most common |
7H / 8g | Free (wide fit) | Assembly lines, zinc die-cast, coatings |
The choice of tolerance class significantly influences manufacturing cost: the tighter the class, the greater the effort in thread cutting, rolling, and inspection. For most mechanical engineering applications, 6H/6g represents the economic optimum between functional requirement and manufacturing effort.
The complete thread designation in a technical drawing follows a defined schema. For an internal thread:
M8 × 1 – 6H – 20
Element | Meaning |
|---|---|
M | Thread type: metric ISO thread |
8 | Nominal diameter: 8 mm |
× 1 | Fine pitch: 1.0 mm (omitted for standard pitch) |
6H | Tolerance class for internal thread |
20 | Thread engagement length: 20 mm |
For external threads, "6g" or another external thread tolerance class appears in place of "6H."
For pipe threads, notation differs: "G 1/2 A" means parallel pipe thread per ISO 228, 1/2 inch nominal bore, tolerance class A (external thread; two classes, A and B, are standardised).
Practical note: if an international drawing package omits the tolerance designation and only states "M8," do not automatically assume ISO 965. Clarify with the supplier whether they manufacture to ISO 965-1 (metric), ANSI/ASME B1.13M (US metric), or another standard. Tolerance values differ between these, even when thread data appears identical.
The same failure patterns appear repeatedly in global procurement. Most arise not from carelessness but from imprecise specification.
Mistake 1: Leaving the thread system ambiguous. A drawing without an explicit thread standard leaves interpretation to the supplier. A Chinese manufacturer will default to GB/T 197 (the Chinese counterpart to ISO 965). This is usually compatible, but not always. Better: state the governing standard explicitly in the title block or parts list.
Mistake 2: Confusing metric and inch threads. M12 and 1/2"-13 UNC have a similar outside diameter (approx. 12.7 mm) but are not compatible. For assemblies sourced from multiple countries, a systematic thread standard review before ordering is worthwhile.
Mistake 3: Specifying too tight a tolerance class. A 4H5H/4h pairing costs noticeably more than 6H/6g because tighter tolerances require more sophisticated gauging, slower cutting speeds, and more frequent tool adjustment. According to data from the American Society for Quality (ASQ), quality-related failures in manufacturing account for 15–20 % of annual revenue — a significant share arising from tolerance specifications that do not match functional requirements. If the design engineer cannot provide a functional justification for the tighter class, clarifying this before ordering is the cheapest quality measure available.

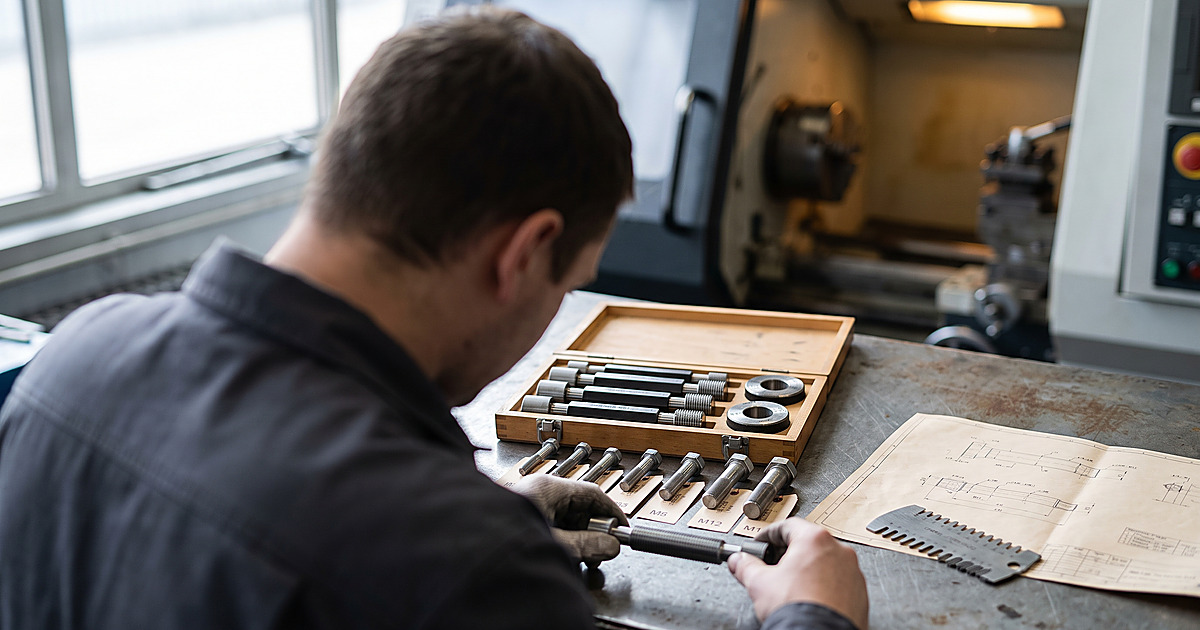

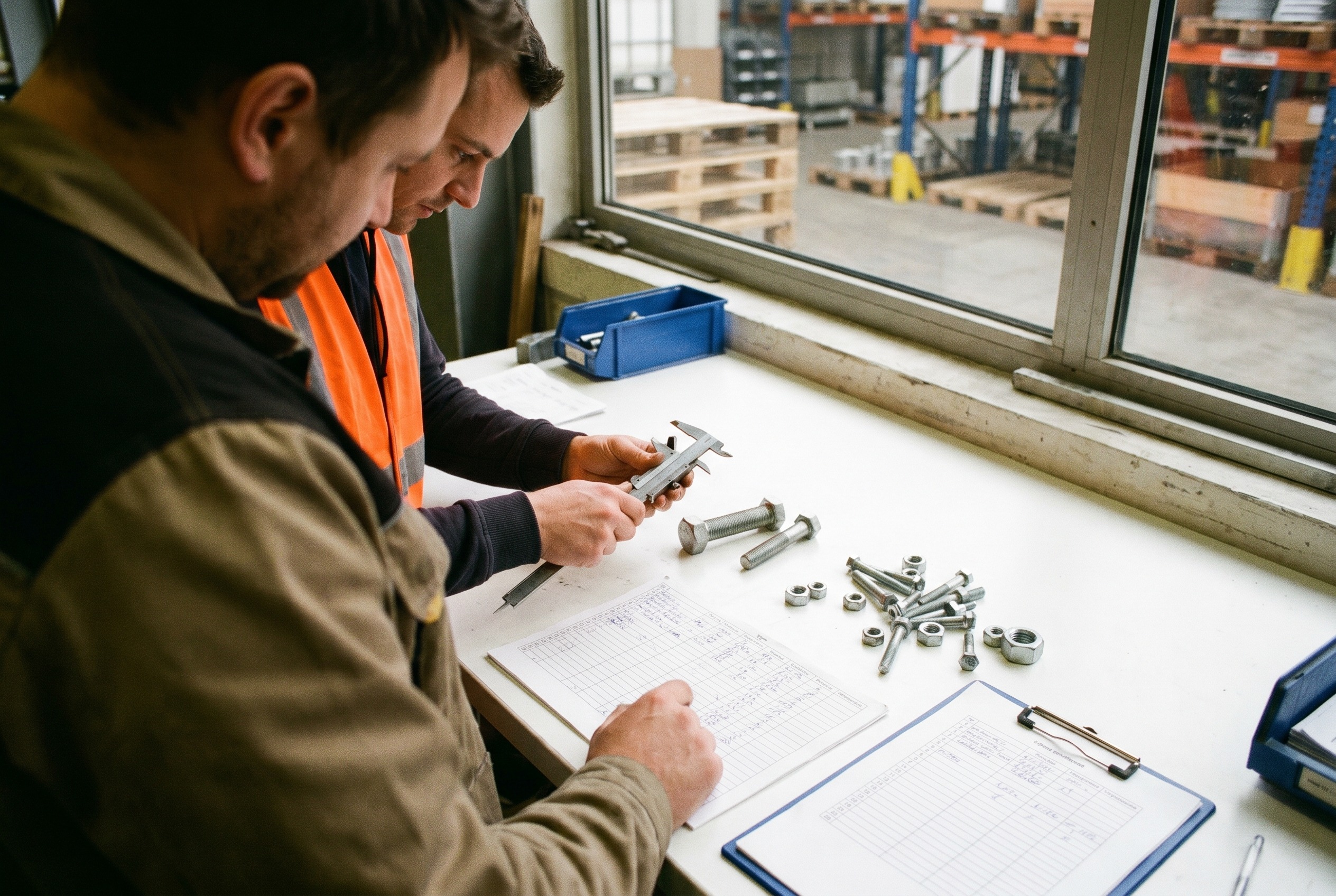

Mistake 4: No thread inspection at incoming control. Thread defects (incorrect profile, pitch error, out-of-tolerance) are often only discovered during assembly. A thread plug gauge (GO/NO GO) for internal threads and a thread ring gauge for external threads belong in the minimum equipment of any technical incoming inspection.
Mistake 5: Surface coating not accounted for. Electroplated zinc deposits typically 5–15 µm per thread flank; zinc-flake coatings 5–10 µm; hot-dip galvanising up to 40–80 µm; lacquer coatings 50–150 µm per layer. With tight tolerance classes (6H/6h), coated bolts may no longer fit uncoated nuts. Solution: specify a tighter pre-coating tolerance (e.g. 6e instead of 6g) or verify with a thread gauge after coating.
The five thread types most relevant in international mechanical engineering procurement are: metric ISO thread (M), with a 60° flank angle and the most widely used system worldwide; metric fine thread (MF), with the same profile but a smaller pitch; inch threads UNC/UNF, dominant in North America and US-sourced supply chains; pipe threads G, Rp, Rc per ISO 228/ISO 7 for piping and valve applications; and trapezoidal thread (Tr) for motion applications in lead screws and presses. The decisive differences lie in the flank angle (60° for metric, 55° for Whitworth/pipe threads), the pitch, and the governing standard that defines the tolerances.
6H designates the internal thread (nut), 6g the external thread (bolt). Both share the same tolerance grade (6) but differ in fundamental deviation: H sits on the zero line (no undersize), g sits just below it (small undersize relative to the nominal profile). The combination 6H/6g produces the standardly defined clearance for general-purpose threads.
A fine thread has a smaller pitch than the standard (coarse) thread of the same nominal size. It is used when higher axial preload is needed at lower torque, when vibration resistance through greater self-locking is important, or when precise adjustment is required (e.g., adjustment screws, hydraulic fittings). Fine threads are more sensitive to damage and contamination than coarse threads.
Thread pitch is the axial distance the bolt advances in one full rotation, measured in millimetres. If a drawing simply states "M8," the standard (coarse) pitch of 1.25 mm per DIN 13-1 applies automatically. If it states "M8×1," the fine pitch of 1.0 mm is specified. This must be explicitly confirmed with the supplier, as many Asian manufacturers will default to the coarse thread when the specification is ambiguous.
The simplest method is a thread pitch gauge (thread comb): place the serrated blades against the thread until one fits flush. The pitch value printed on the blade is what you need. For metric threads, pitch is expressed in millimetres. Alternatively, pitch can be measured by counting ten thread crests, measuring the total axial distance, and dividing by ten. Optical measuring equipment (profile projectors, optical comparators) performs this measurement non-contact with high precision.
With thread gauges (GO/NO GO) per ISO 1502, the universal inspection tool for thread fits. The GO gauge must enter smoothly, the NO GO gauge must not enter. For dimensional inspection, thread profile gauges or optical measuring equipment (profile projectors) are used.
Under high cyclic loads (e.g. engine components, compressors), with very short engagement depths below 1×d where minimal clearance improves load distribution across the few available thread flanks, for precision adjustment applications (hydraulic fittings, measuring instruments), or where coated fasteners must still engage reliably after plating. In these cases, 6H/5g or 6H/6h is often the right choice.
A thread tolerance is only as good as its implementation along the entire supply chain. Selecting the right class, accounting for coating allowances, and specifying these requirements in a way that a supplier in the Far East can implement and measure: that is where precise procurement makes its impact.
At Line Up, we accompany the procurement of mechanical components from drawing review to incoming inspection. With our own branch office in China and more than 30 years of international procurement experience, we ensure that thread dimensions are verified at the manufacturer before freight costs arise. First-sample approval at Line Up includes thread gauge inspection (GO/NO GO) as standard, so tolerance defects do not surface for the first time on the assembly line.
