Hardness Testing: Rockwell, Vickers & Brinell Compared

A test certificate for an incoming steel component lists a hardness value of 220 HB, but the drawing calls for a Vickers value instead. Both figures describe the same physical property, yet they aren't directly comparable without conversion. Anyone accepting components from Far East manufacturing should know which hardness testing method fits which material, and what the resulting value actually tells you.

In brief: Hardness testing measures a material's resistance to an indenter pressing into its surface. The three established methods are Brinell (large ball indenter, soft to medium-hard materials), Vickers (diamond pyramid, universally applicable including thin and small parts), and Rockwell (fast, direct readout, common in series production).

What is hardness testing and what is it used for?

Hardness testing determines a material's resistance to a defined indenter pressing into its surface under a set force. The resulting hardness value allows conclusions about wear resistance, tensile strength, and whether a component received the correct heat treatment, without destroying a tensile specimen.

In procurement, hardness testing usually serves acceptance control: it confirms that a sourced component actually received the agreed heat treatment, for instance hardening or tempering. A deviating hardness value is often the earliest measurable sign of a faulty or skipped heat-treatment step at the manufacturer.

That's why the desired hardness testing method and target value range belong in the requirements specification for the component inquiry, not in a later back-and-forth with the manufacturer. If the choice is left open, the manufacturer in practice often decides based on their own equipment rather than the method that actually fits the component.

What hardness testing methods exist?

The three established hardness testing methods differ in indenter type, test force range, and the range of applications they suit best.

All three methods produce different numerical values on the same component, since indenter and test force each capture a different physical quantity. Converting between HB, HV, and HRC values is therefore always approximate, never exact.

How does Brinell hardness testing work?

In Brinell hardness testing, a carbide ball is pressed into the workpiece surface under a defined test force. The diameter of the resulting indentation is then measured optically, from which the Brinell hardness value is calculated.

The method suits soft to medium-hard materials with a coarse-grained structure especially well, such as cast parts, since the comparatively large indentation averages out local structural irregularities. For very hard or thin components, Brinell reaches its limits, since the indenter itself could deform or the component could be pressed through.

Coarse-grained castings from Far East foundries are the typical case in our projects where Brinell proves noticeably more robust than the other two methods.

What's the procedure for Vickers hardness testing?

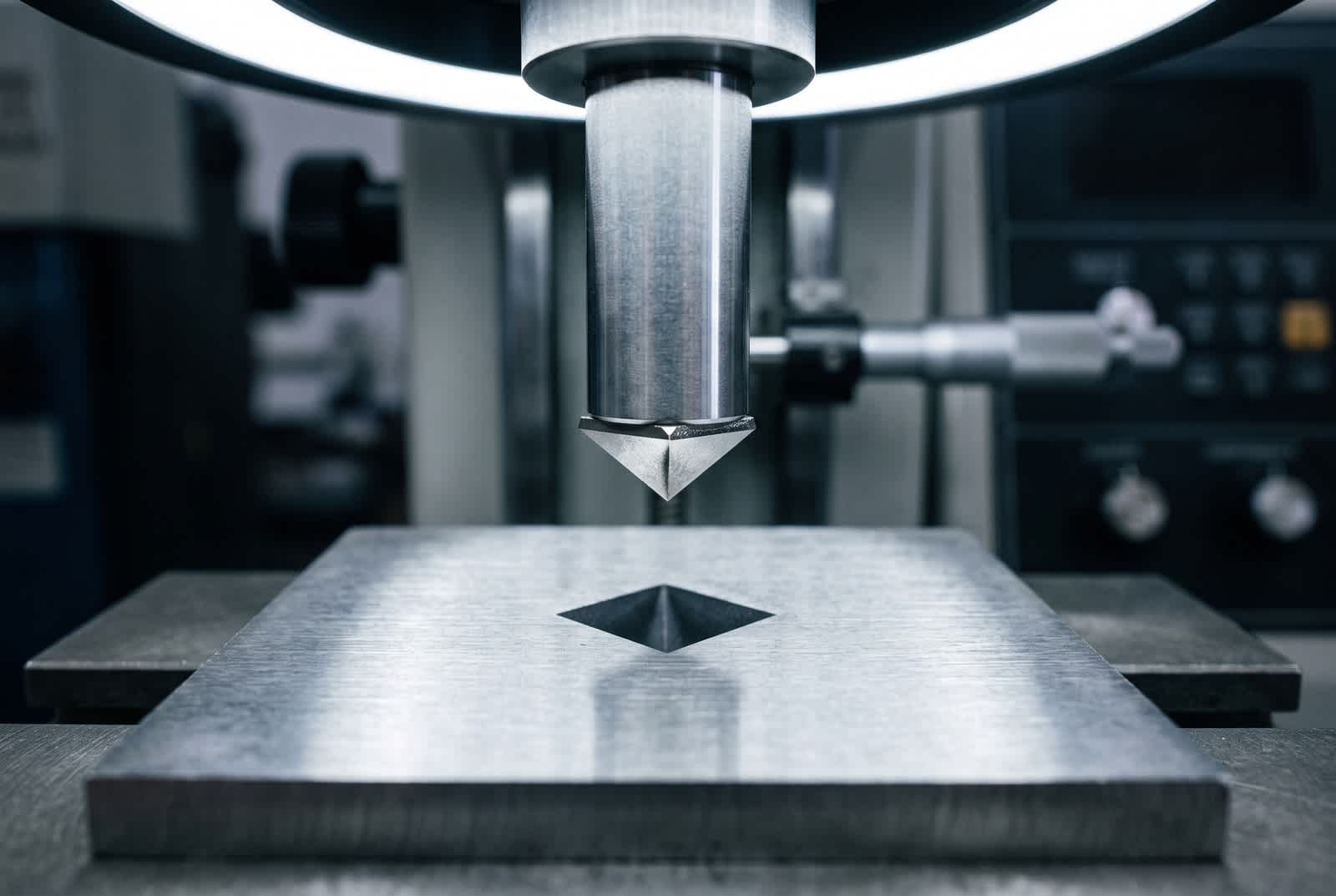

In Vickers hardness testing, a diamond pyramid with a square base is pressed into the surface. The two diagonals of the resulting indentation are then measured, and their average yields the Vickers hardness value.

Vickers' advantage lies in its broadly scalable test force: the same principle works from very low forces for thin coatings up to high forces for solid components. As a result, a single method covers nearly the entire hardness range of metallic materials, which makes Vickers the first choice as soon as a component is small, thin, or inconsistent in composition.

When is Rockwell hardness testing used?

Rockwell hardness testing reads the indentation depth of an indenter, usually a diamond cone or a hardened steel ball. The reading happens directly off the testing machine under a preliminary and a main load. Unlike Brinell and Vickers, there's no optical measurement of the indentation, which makes the test considerably faster.

Rockwell hardness testing therefore suits series testing in production particularly well, where many components need testing in a short time and a directly readable value is sufficient. For very thin components or coatings, Rockwell is less suitable, since the indentation depth quickly runs up against the material's limit.

Which hardness test suits which material and component?

Choosing the right method depends primarily on component size, material, and required test speed.

In practice, hardness testing application ranges frequently overlap, so several methods are technically viable. In that case, the test method already agreed in the requirements specification usually decides, not a fresh case-by-case judgment call.

How do you read a hardness value on a test certificate?

In our quality inspections at Far East suppliers, we first check hardness testing results for which method underlies the stated value. HB, HV, and HRC values aren't directly convertible, after all, and are only approximately comparable. If the drawing calls for a Vickers value but the test certificate lists a Rockwell value, that should trigger a query to the manufacturer about which method was actually agreed for acceptance, before releasing the part.

Equally important is the test location on the component: a hardness value measured at an unloaded edge zone says little about the actually stressed surface. On a complete 3.1 inspection certificate, stating the test location is therefore part of the minimum scope you should cross-check during incoming goods inspection.

What standards govern hardness testing?

Each of the three hardness testing methods is fixed in its own international standard, which bindingly prescribes test force, indenter geometry, and evaluation. That standard number belongs on every complete test certificate, since it alone defines the conditions under which the stated hardness value is actually valid.

If the standard number is missing from the test certificate, the hardness value strictly speaking can't be reliably classified. Even small deviations in test force or dwell time can shift the result. The same logic applies to a component's dimensions and shape: without a reference standard, a deviation is a matter of opinion. Where no separate tolerance is specified on the drawing, general tolerances per ISO 2768 apply as the default reference.

Frequently Asked Questions

Which hardness testing method fits my component?

That depends on the material and component size: Brinell suits soft to medium-hard materials with a coarse structure, such as castings; Vickers suits small, thin, or coated components as well as very hard materials; Rockwell suits fast, high-throughput series testing.

How is hardness testing performed?

A defined indenter is pressed into the workpiece surface under a set force. Depending on the method, the resulting indentation is then either measured optically (Brinell, Vickers) or its depth is read directly off the machine (Rockwell).

What are the advantages of Vickers hardness testing?

Thanks to its broadly scalable test force, Vickers covers nearly the entire hardness range and works reliably on small, thin, or coated components, where Brinell and, in some cases, Rockwell reach their limits.

What indenter is used in Vickers hardness testing?

Vickers hardness testing uses a diamond pyramid with a square base. The two diagonals of the resulting indentation are measured.

What test force is used in hardness testing?

Test force depends on the method and the material's hardness. Brinell typically uses high forces, Vickers covers a very broad force range thanks to fine gradation, and Rockwell uses a two-stage preliminary and main load.

Conclusion: the right hardness testing method secures reliable component acceptance

Brinell, Vickers, and Rockwell hardness testing answer the same question about material hardness in different ways, each with its own strengths for material, component size, and test speed. Knowing which method fits and correctly interpreting the hardness value on a test certificate reveals heat-treatment deviations before they become a problem in series production. This matters even more the further away production is geographically: for components from Far East manufacturing, the on-site test location is often the only reliable check before the part ever reaches Europe.
