Powder Coating: Process, Benefits and Applications

A pallet of powder-coated aluminum housings arrives from the Far East. The real question at incoming goods is this: does the coating actually meet the agreed specification, or will that only show up months later as chipping and corrosion? Anyone who just writes "good surface quality" for powder coating on the purchase order has no solid ground to stand on if a dispute arises.

In brief: Powder coating is an electrostatic, solvent-free coating process that creates a durable protective layer, usually 60 to 120 µm thick, on aluminum, steel, galvanized steel, and stainless steel. For steel and galvanized steel parts, expected protection duration can be set via the corrosivity categories in DIN 55633/55634. Coating quality itself can be verified through quality seals such as QUALICOAT or GSB International, plus a coating-thickness measurement at incoming goods.

How does powder coating work?

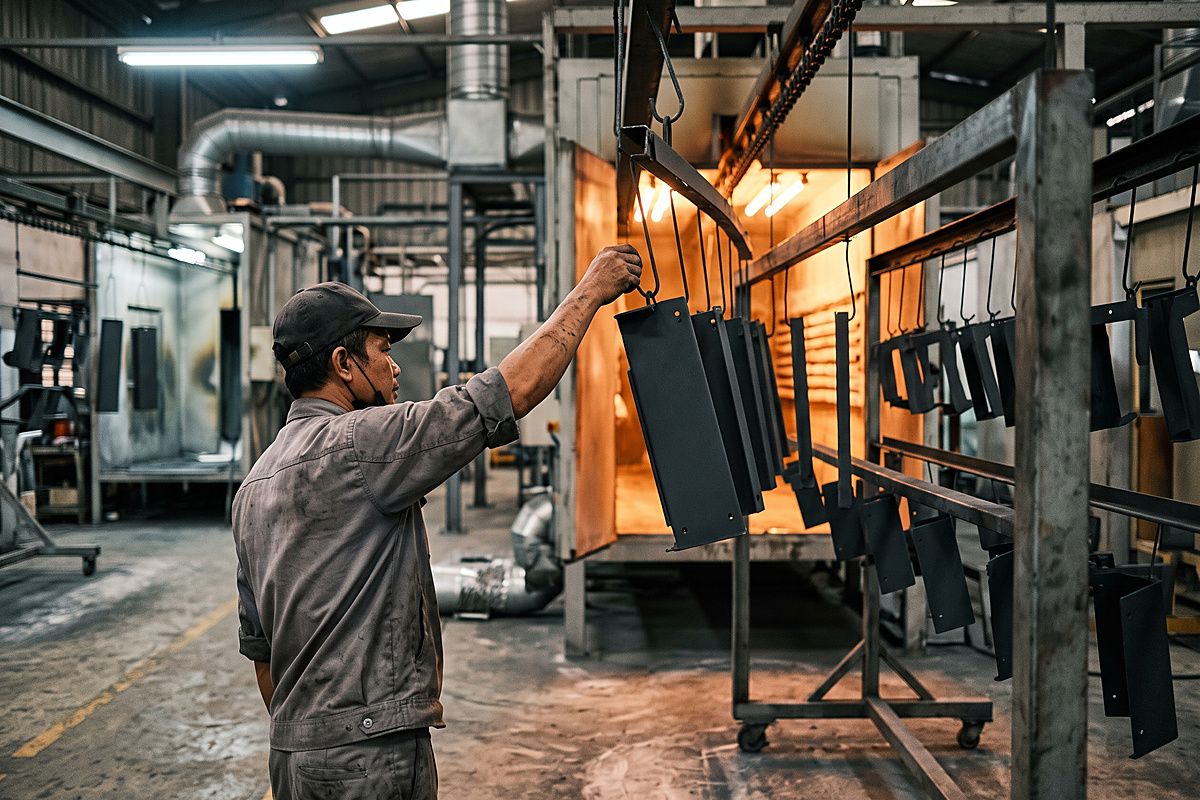

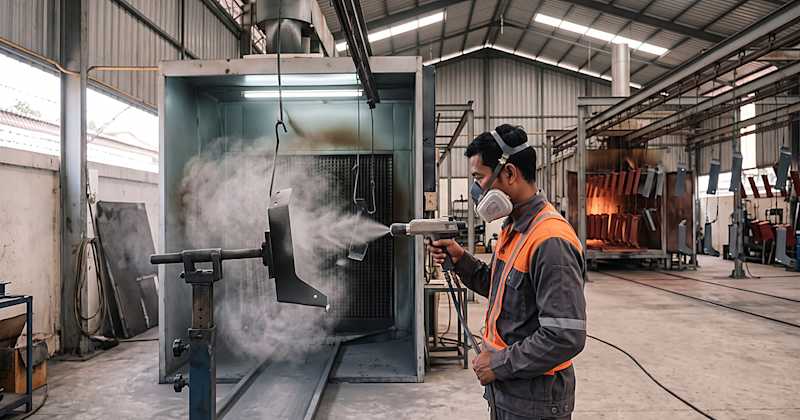

In powder coating, spray equipment applies an electrostatically charged resin powder onto the grounded part, which manufacturers usually degrease and phosphate- or chromate-treat beforehand. The electrostatic charge makes the powder adhere evenly even in hard-to-reach areas, before an oven cures it, typically at 140 to 200°C. During curing, the powder melts and cross-links into a closed, mechanically and chemically resistant layer.

Unlike wet paint, powder coating uses no solvents at all: the powder consists of solid particles, not a liquid, solvent-based formulation. Industrial systems can recover and reuse a large share of the powder that doesn't adhere, which significantly cuts material consumption compared to wet paint.

Powder coating counts among the established processes in industrial surface treatment. In Germany, professional practice in this field is represented in part by the Zentralverband Oberflächentechnik (ZVO), the German surface-technology industry association.

Which materials can be powder coated?

Powder coating is fundamentally suited to any electrically conductive material, since the process relies on the part's electrostatic charge. Plastics and other non-conductive materials need special pretreatments first and remain the exception in industrial practice.

What advantages does powder coating offer over wet paint?

The biggest difference is material usage. According to the German paint and printing ink industry association (VdL), industrial powder coating systems achieve overspray recovery rates of up to 99%. Wet paint, by contrast, inherently loses some solvent through evaporation.

In procurement practice, this material-efficiency angle is the more solid cost lever. It's far more concrete than the often-repeated but rarely well-supported "up to 50% cheaper" rule of thumb versus wet paint. How much it actually matters depends on part geometry, lot size, and how often the line switches colors.

Other advantages: powder coatings are generally more impact- and scratch-resistant than comparable wet-paint layers. Since no solvents evaporate, the corresponding VOC emissions (volatile organic compounds) at the coating facility are also largely eliminated. The table below summarizes the key differences:

What is powder coating used for industrially?

Powder coating shows up wherever conductive metal parts need lasting corrosion and scratch protection combined with a defined appearance: machine and switch-cabinet housings, aluminum facade and window profiles, wheel rims, furniture frames, and appliance housings are all typical application areas.

For parts that also need high mechanical resistance to impact and scratching, such as brackets or frames mounted outdoors, powder coating is often the more obvious choice. It tends to outperform plain galvanizing here, which is primarily designed for corrosion protection and less for surface appearance.

For parts with especially high corrosion requirements, manufacturers combine both processes: a galvanized base layer, with powder coating on top as an additional mechanical and visual protective layer.

What standard and coating thickness apply to powder coating?

For powder-coated steel and galvanized steel parts, the standards DIN 55633 (wall thickness from 3 mm) and DIN 55634 (thin-walled parts) define corrosivity categories that let procurement teams derive the appropriate protection duration for a given application. DIN EN ISO 12944, often cited in this context, actually covers only air-drying wet paint systems and explicitly excludes powder and stoving coatings. For procurement teams, referencing DIN 55633/55634 in the specification is the practical basis for agreeing on a concrete, verifiable requirement instead of a vague phrase like "good quality."

Coating thickness itself typically ranges from 60 to 120 µm for a single-layer industrial application, with 60 to 90 µm covering the most commonly specified range in practice. For heat-sensitive substrates, powders with lower curing temperatures below 120°C are also available.

How can you verify powder coating quality at incoming goods?

Coating thickness can be checked non-destructively directly on the part with a magnetic-induction or eddy-current gauge, supplemented by a visual check for blistering, pinholes, or uneven gloss. A single measurement on one part isn't enough for a reliable statement about an entire lot, though. The same sampling logic applies here as for other characteristics checked during incoming goods inspection.

In our quality checks with Far East suppliers, we specifically ask whether the coating facility holds QUALICOAT or GSB International certification before the actual thickness measurement even begins. Both quality seals audit certified facilities with unannounced inspections, which gives us an added layer of assurance independent of our own checks. A coating facility that can't answer that question clearly is already an early warning sign in supplier selection.

What does powder coating cost?

Flat, blanket price-per-square-meter figures aren't very meaningful, since part geometry, pretreatment, color-changeover effort, and lot size influence cost more than the coating process itself. It's more useful to look at the actual cost drivers:

• Lot size and color-changeover frequency: small lots with frequent color changes cause disproportionately high setup costs, while large, homogeneous lots let powder coating's material efficiency pay off fully.

• Pretreatment: thorough degreasing and phosphate or chromate treatment improves adhesion and corrosion protection, but adds process steps.

• Part geometry: complex geometries with hard-to-reach interior surfaces require more careful application and sometimes rework at critical spots.

• Required coating thickness and corrosivity category: a higher corrosivity category under DIN 55633/55634 can require a greater coating thickness or an additional coating pass.

In our sourcing projects, we regularly see two quotes for what looks like the same part come in far apart. The reason: the suppliers assumed different lot sizes and color-changeover frequencies without stating so in the quote itself. For procurement, that means a solid price inquiry names lot size, material, required corrosivity category, and number of colors, rather than relying on a flat price-per-square-meter figure.

Frequently Asked Questions

How long does powder coating last?

Depending on the corrosivity category under DIN 55633/55634, anywhere from 2 to over 15 years, depending on environmental conditions, pretreatment, and coating thickness.

Is powder coating better than wet paint?

There's no blanket answer, but powder coating is more material-efficient, more impact-resistant, and lower-emission for most conductive metal parts. For very complex geometries or non-conductive substrates, wet paint remains the more practical choice in individual cases.

What coating thickness is typical for powder coating?

Usually 60 to 120 µm for a single-layer industrial application, with 60 to 90 µm as the most common practical range.

How do you recognize a certified powder coating facility?

Through internationally recognized quality seals such as QUALICOAT (aluminum) or GSB International, which audit certified facilities with unannounced inspections.

Conclusion: powder coating needs a verifiable specification

For most conductive metal parts, powder coating is the more material-efficient and resistant alternative to wet paint. The real risk sits in an imprecise specification. Anyone who concretely defines corrosivity category, coating thickness, and the coating facility's quality seal has solid, verifiable ground to stand on at incoming goods.
