Aluminum or Stainless Steel: Differences and Material Choice

Aluminum and stainless steel both count as corrosion-resistant, but they get there through completely different mechanisms. That's exactly what makes material choice harder than a drawing marked "metal, corrosion-resistant" suggests. In weight, strength, and cost, the two materials sit far enough apart that the decision shapes every aspect of the part, from function to appearance.

In brief: Aluminum is roughly three times lighter than stainless steel but noticeably less strong, and it conducts heat about 13 times better. Stainless steel takes on heavily loaded and hygiene-critical applications, aluminum wins on weight and heat dissipation. When the two metals come into direct contact, for example a stainless screw in an aluminum housing, galvanic corrosion becomes a risk if no isolation is in place.

What Fundamentally Distinguishes Aluminum from Stainless Steel?

Aluminum and stainless steel differ mainly in density, strength, and thermal conductivity. The table below compares two grades frequently set side by side in practice: aluminum alloy EN AW-6060 and stainless steel 1.4301 (V2A). The figures come from data sheets from weltstahl.com and a material comparison from techeld.de:

For the same volume, aluminum is nearly three times lighter. Stainless steel, though, reaches more than double the tensile strength and conducts heat roughly 13 times worse. For a part that needs to be both light and highly loadable, some compromise is unavoidable, the stronger requirement ultimately decides.

Which Material Resists Corrosion Better?

Both materials protect themselves with a self-forming oxide layer, just through different mechanisms. Aluminum immediately forms a thin but very stable aluminum oxide layer in air that regrows on its own when damaged. Stainless steel forms a similar passive layer based on chromium oxide thanks to its chromium content. This layer is likewise self-healing, as long as enough chromium and oxygen are available.

Both mechanisms fail under different conditions. Aluminum is sensitive to strongly alkaline or chloride-rich environments. Stainless steel's passive layer, meanwhile, is mainly attacked by pitting corrosion in salty or chemically aggressive settings. What matters for a given application is which of the two weak points is actually relevant in that specific case. The broader question of which material is more resistant overall plays a secondary role here.

There are significant differences within each material group too. Not every aluminum alloy and not every stainless steel grade offer the same corrosion protection. Higher-alloyed, copper-containing aluminum grades are more prone to pitting than pure aluminum. Stainless steel only reaches true resistance to chloride-rich and salt water through a molybdenum content of 2.0 to 2.5 percent, present in grade 1.4401 (V4A) but absent from molybdenum-free 1.4301 (V2A). The label "stainless steel" alone therefore says little about that resistance, what matters is the specific grade number.

What Happens When Aluminum and Stainless Steel Touch?

When aluminum and stainless steel are in direct electrical contact and jointly wetted by a conductive medium such as moisture or condensation, galvanic corrosion occurs. This is known under DIN EN ISO 8044 as bimetallic corrosion. Aluminum sits considerably lower on the electrochemical series than stainless steel. That's why it corrodes preferentially in contact, while the stainless steel stays protected.

In our sourcing projects, this risk shows up most often with fasteners. A common example: a customer specifies stainless screws for an aluminum housing out of cost habit or convention. Without isolation, exactly the combination of contact and moisture that favors galvanic corrosion forms around the screw. It's often only visible after several months in the field.

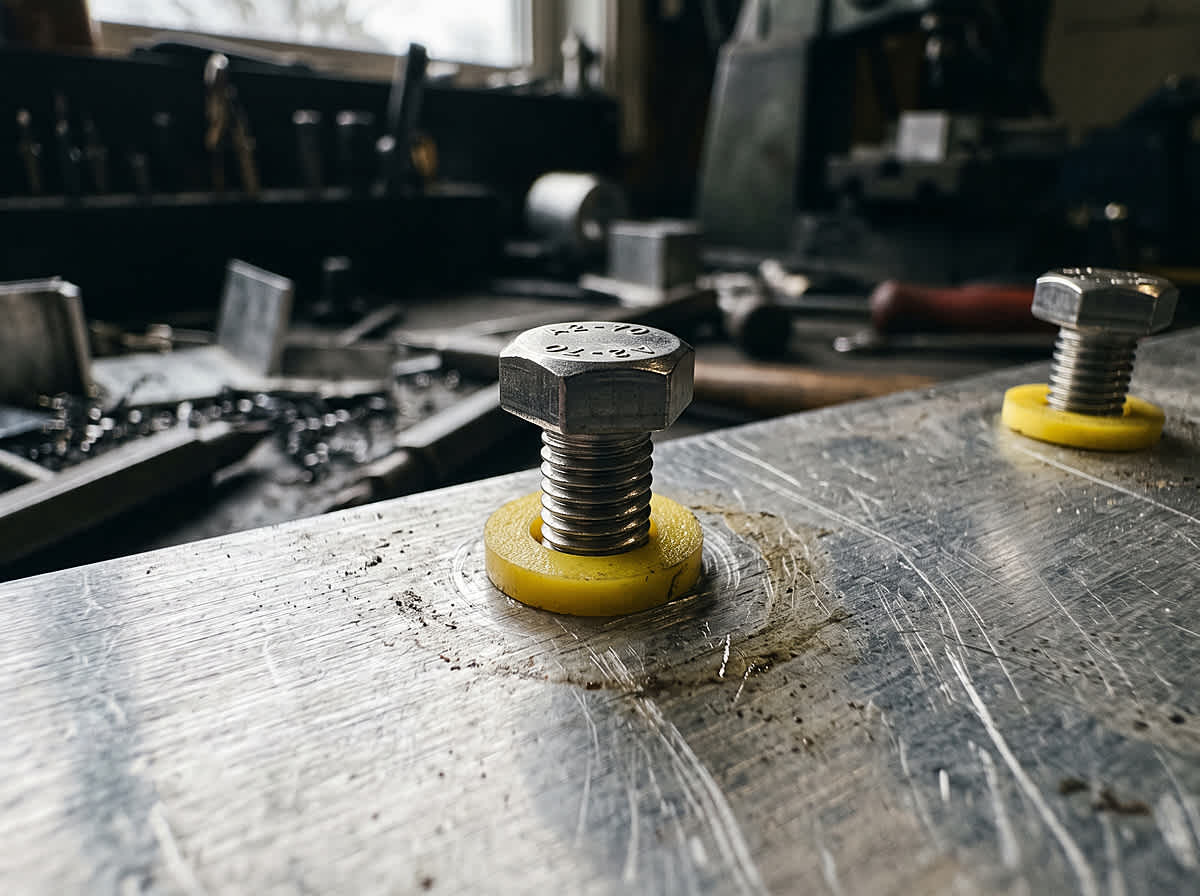

Three measures reliably prevent the problem. The first two are straightforward: electrically separating the metals with plastic washers or sleeves, or applying an insulating coating at the contact point. The third uses sacrificial anodes made from an even less noble metal like zinc, which draw the corrosive attack onto themselves instead. Which measure makes sense depends on whether the connection needs to stay removable or has to be permanently sealed.

Which Material Fits Which Application?

In practice, material choice rarely follows a single property, it follows whichever requirement on the part is strongest.

In our sourcing projects, the material choice is often half-made before the actual inquiry even reaches us. Usually, that's out of habit, or because a competitor's product uses the same material. A quick check against the actual requirement, weight, load, or hygiene, saves more money at this stage than a later negotiation over unit price.

Which Costs More, Aluminum or Stainless Steel?

The raw material price per volume for stainless steel 1.4301 sits somewhat above that of aluminum EN AW-6060. The difference is smaller, though, than stainless steel's higher weight would suggest. Since stainless steel is nearly three times denser, a comparable part often needs more material too, unless wall thickness is adjusted. Manufacturing cost adds to this: aluminum generally machines faster, while stainless steel has the edge in welding and polishing.

Anyone factoring in total cost of ownership should therefore weigh part weight, machining effort, and service life under the actual operating conditions alongside price per kilogram. How this plays out across different steel grades usually only becomes clear once several supplier quotes are compared directly. A structured evaluation helps weigh those quotes objectively.

Frequently Asked Questions About Aluminum and Stainless Steel

Which Is Better, Aluminum or Stainless Steel?

Which material is better depends on the specific requirement. Aluminum wins on weight and thermal conductivity, stainless steel on strength, hygiene, and appearance over a long service life.

Which Is More Expensive, Stainless Steel or Aluminum?

The material price per volume for stainless steel 1.4301 sits somewhat above that of aluminum EN AW-6060. Since stainless steel is considerably denser, the difference per part can shift depending on how much material is actually needed.

Can Stainless Steel Screws Be Used in Aluminum?

Yes, but only with care. Without electrical isolation between the metals, the combination favors galvanic corrosion on the aluminum around the screw. Plastic washers, insulating coatings, or alternative screw materials prevent the problem.

Can Stainless Steel Be Anodized Like Aluminum?

No. Anodizing depends on forming an aluminum oxide layer that only forms this way on aluminum. Stainless steel instead forms a different, chromium-oxide-based passive layer that can't be created or reinforced through anodizing.

Conclusion: The Requirement Determines the Material Choice

Aluminum and stainless steel rarely rule each other out when choosing a material, they cover different requirement profiles. Clarifying weight, load, hygiene, and galvanic corrosion risk upfront beats relying on habit or matching a competitor's choice. That decision pays off over the part's entire service life.
